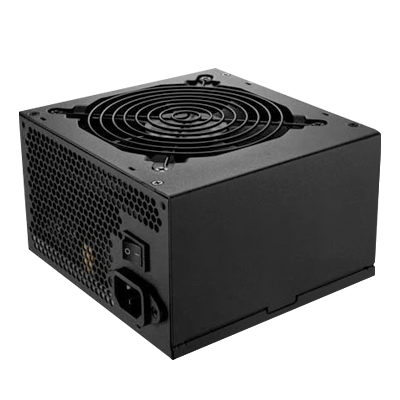

600W ATX 80 Plus Gold – Build Redux
600W ATX 80 Plus Gold

600W ATX 80 Plus Gold

Regular price
$79
Sale price
$79
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Type Intel ATX 12V v2.3
Maximum Power  600W
Fans  1 x 120mm Intelligent Cooling Fan
PFC  Active
Main Connector  20+4Pin
+12V Rails  Single
PCI-Express Connector  2 x 6+2-Pin
SATA Power Connector  6
SLI  SLI Ready
Haswell Support Yes
CrossFire  CrossFire Ready
Modular  Non-Modular
Power Good Signal 100-500ms
Hold-up Time 16msec (minimum) within 60% load
Efficiency  82-86% efficiency @ 20-100% load
Energy-Efficient 80 PLUS Certified
Over Voltage Protection  Yes
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 10A Max
Output +3.3V@22A, +5V@17A, +12V@42A, -12V@0.5A, +5VSB@2.5A
MTBF  >100,000 Hours
Approvals CE, CB, TUV, UL, FCC
Dimensions 3.39" x 5.91" x 5.51"
Max PSU Length 140 mm
Weight 4.40 lbs.
