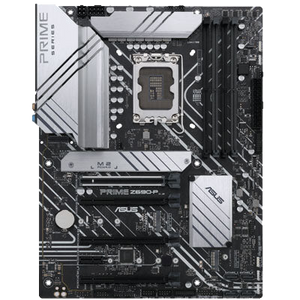

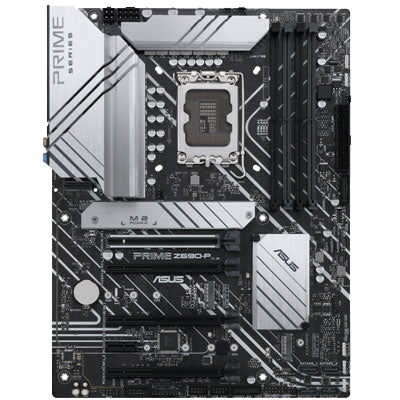

ASUS Z690 Series | INTEL

ASUS Z690 Series | INTEL

Regular price
$225
Sale price
$225
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Supported CPU
CPU Socket Type  LGA 1700

* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type Supports 12th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset  Intel Z690
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express 5.0 x16

* Actual support may vary by CPU.
* Please check PCIe bifurcation table in support site.
PCI Express 4.0 x16 1 x PCI Express 4.0 x16

* Supports x4 mode.
PCI Express 3.0 x16 2 x PCI Express 3.0 x16

* Support x4 mode.
PCI Express x1 1 x PCIe 3.0 x1
Other Slots V-M.2 slot only (Key E, CNVi & PCIe)*

* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 Intel 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 12th Gen processors support PCIe 4.0 x4 mode.

Intel Z690 Chipset:**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready Yes
Onboard Audio
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek 2.5Gb Ethernet
Max LAN Speed 10/100/1000/2500Mbps
Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt header
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.2"
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Windows Compatibility
Windows 11 Ready
